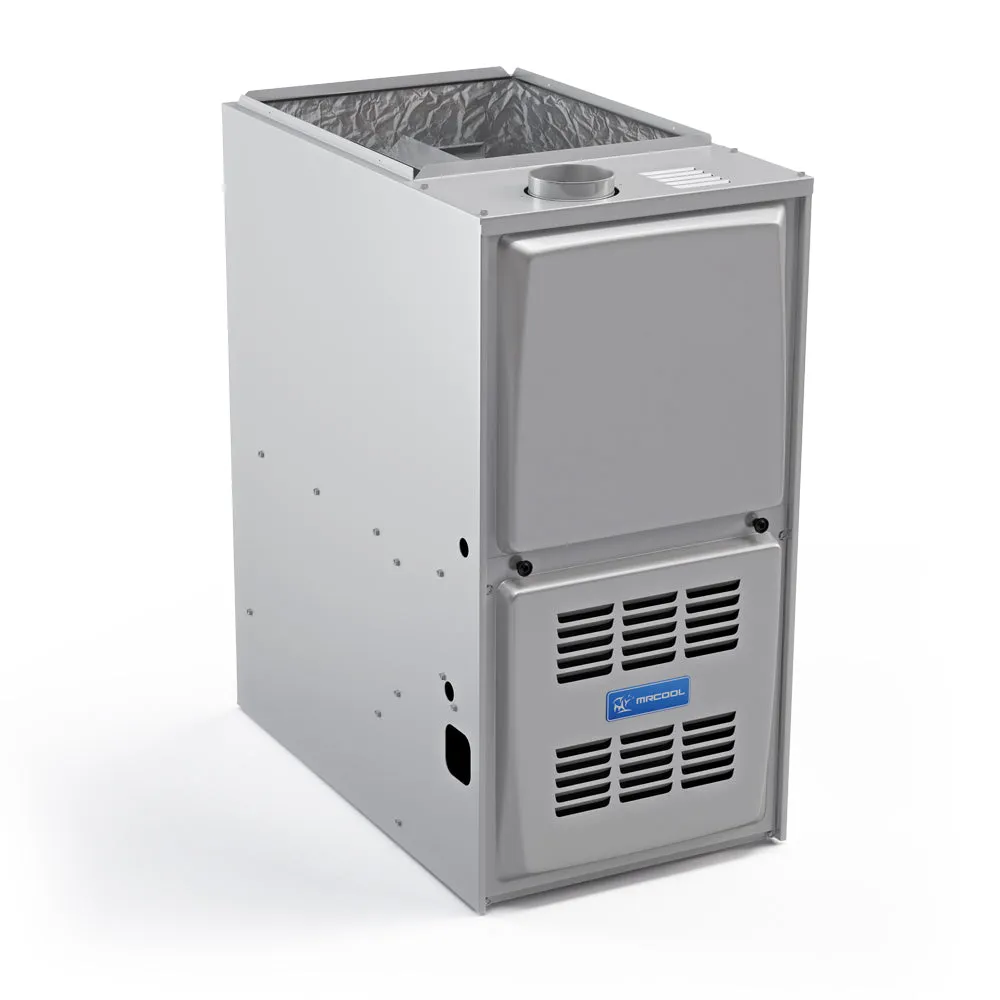

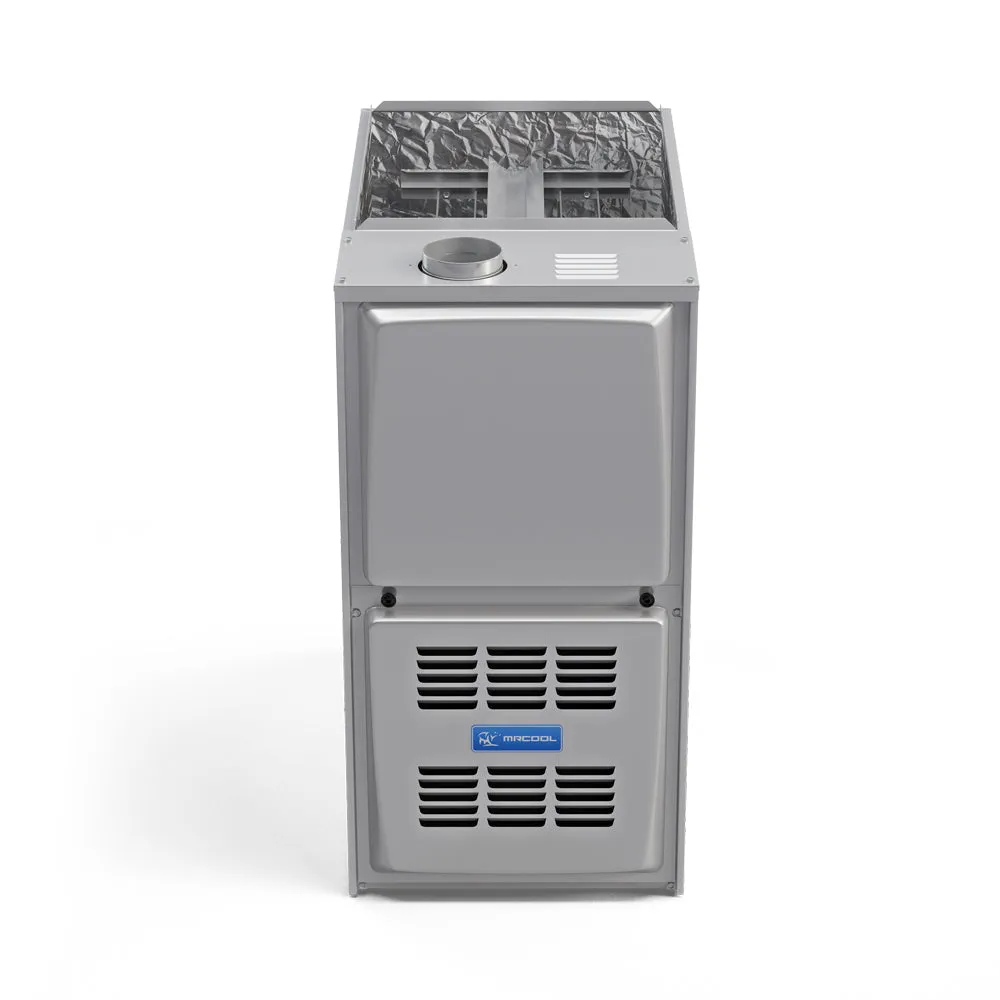

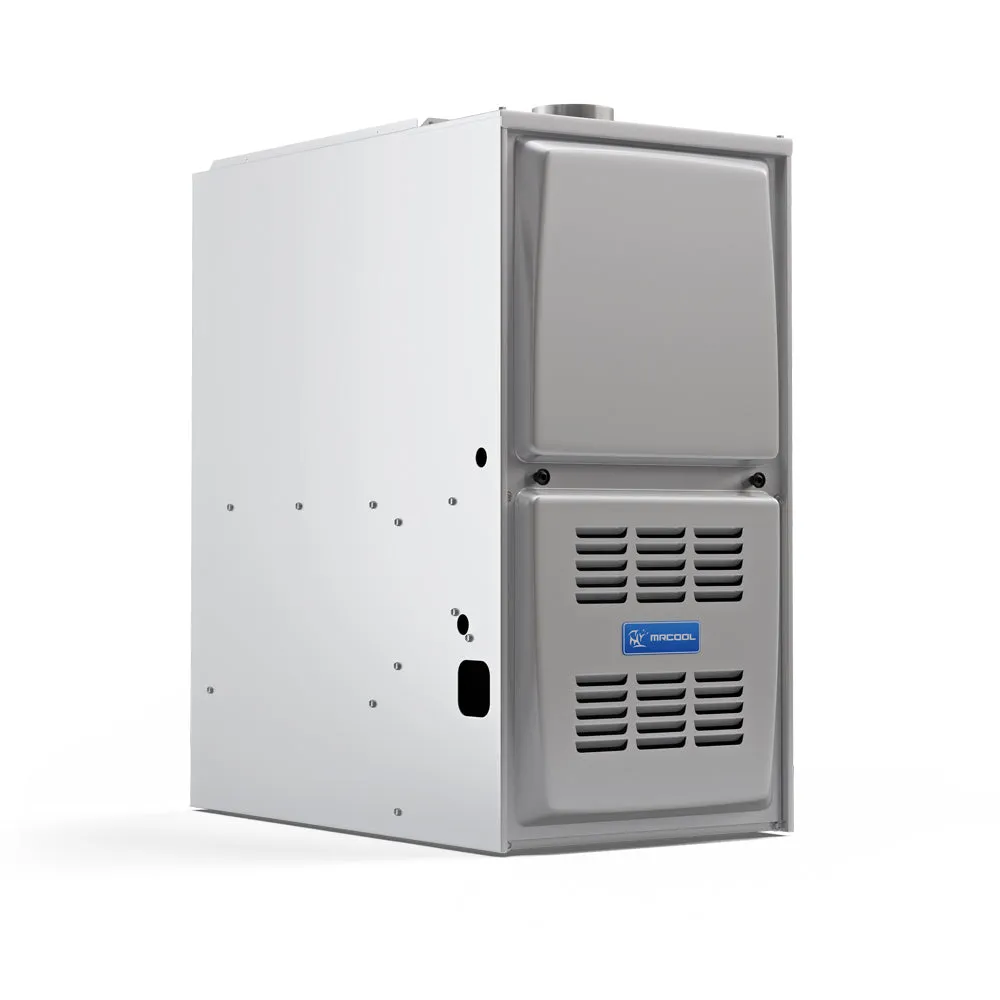

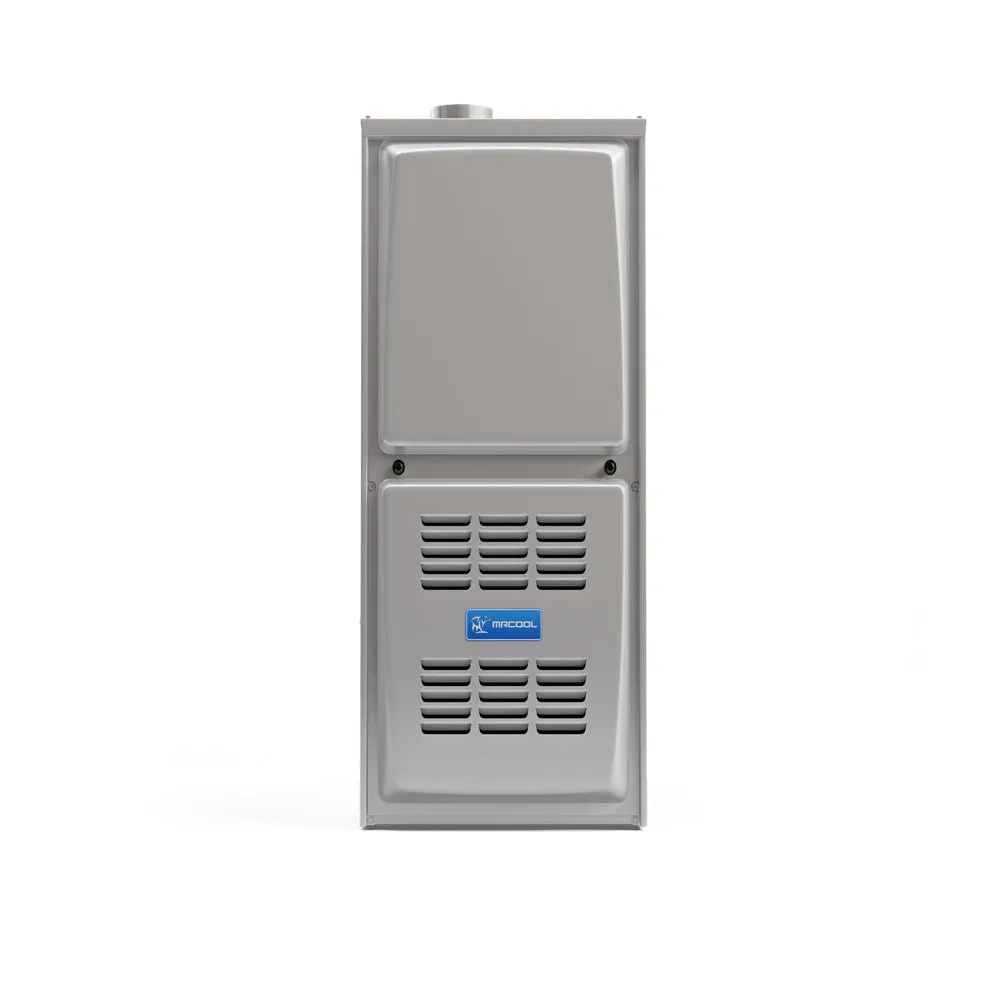

MRCOOL® Signature Series 80% AFUE 90K BTU 2000 CFM Upflow/Horizontal Single-Stage Multi-Speed ECM Motor Furnace with 21" Cabinet - MGM80SE090C5A
When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL® Signature Series 80% AFUE 90K BTU 2000 CFM Upflow/Horizontal Single-Stage Multi-Speed ECM Motor Furnace with 21" Cabinet. This system can be installed upflow or horizontal, and is designed to operate for decades, provide powerful heating capability, and best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.
Features:
- Removable floor base for bottom return air
- Easily removable slide out blower design
- Left or right utility connections
- Zero step horizontal conversion
- Aluminized steel inshot burners for smooth ignition
- Multi-speed high efficiency (constant torque) blower motor
- AHRI Certified
- Aluminized steel tapered crimped non-welded clam shell heat exchanger design
- Heating efficiency of 80% AFUE
- Registered 10-year parts warranty
- Compact 33" height
- Rotatable draft inducer for venting flexibility
Specifications:
| BRAND | MRCOOL |
| MODEL | MGM80SE090C5A |
| SERIES | Signature Multi Position 80% AFUE Furnace |
| UNIT TYPE |
Gas Furnace |
| CONFIGURATION |
Multi-Position |
| AFUE | 80% |
| CFM | 2060 |
| TONNAGE | 5 |
| HEATING CAPACITY |
88,000 BTU |
| FUEL TYPE |
Natural Gas |
| BTU INPUT |
88000 |
| BTU OUTPUT |
70400 |
| VOLTAGE | 120 |
| PHASE | 1 |
| CYCLE | 60 |
| STAGE | Single |
| MAX FUSE BREAKER |
15 |
| MIN CIRCUIT AMPACITY |
10.9 |
| COLOR | Gray |
| COLOR FAMILY |
Gray |
| FULL LOAD |
10.9 |
| NUMBER OF SPEEDS |
5 Speeds |
| NUMBER OF BURNERS |
8 |
| GAS CONNECTION SIZE |
0.5 |
| BLOWER MOTOR TYPE |
ECM |
| BLOWER MOTOR HP |
1 |
| BLOWER MOTOR SPEEDS |
5 |
| BLOWER MOTOR RPM |
1200-2060 |
| HEAT EXCHANGER TYPE | Aluminized steel |
| IGNITION TYPE |
silicon nitride ignitor |
| VENT CONNECTOR |
4 inch |
| LP KIT INCLUDED |
No |
| LP KIT AVAILABLE |
Yes |
| CSA CERTIFIED |
Yes |
| ISO CERTIFIED |
No |
| ENERGY STAR COMPLIANT |
No |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
Registered 10 Year Parts Warranty |
| BASE WARRANTY |
5 Year Parts Warranty |
| REGISTERED HEAT EXCHANGER WARRANTY |
Registered 20 year Heat Exchanger Warranty |
| BASE HEAT EXCHANGER WARRANTY |
20 year Heat Exchanger Warranty |
| HAS BATTERIES |
No |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
No |
| CONTAINS AEROSOL |
No |
| CONTAINS COMPRESSED GAS |
No |
| PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
Yes (California) |
| NET DEPTH |
28 3/8 inches |
| NET HEIGHT |
33 inches |
| NET WIDTH |
21 inches |
| NET WEIGHT |
152 lbs |
| GROSS WEIGHT |
152 lbs |
